Medical Image Corruption: A Comprehensive Guide to Recovery, Compliance, and Quality Assurance

Introduction: When Medical Images Fail - The Critical Impact on Patient Care

In the frantic pace of an emergency room, every second counts. A patient arrives with symptoms of a potential stroke, and a critical CT scan of the brain is ordered and performed. The neurologist waits, ready to make a life-altering decision. But when the physician attempts to open the file from the Picture Archiving and Communication System (PACS), a cryptic error message appears: ";Invalid File Format." The image is corrupt. The diagnostic process grinds to a halt, and the window for effective intervention begins to close. This is not a hypothetical scenario; it is a stark reality in modern digital healthcare.

Medical images---from X-rays and CT scans to MRIs and ultrasounds---are the bedrock of contemporary diagnosis and treatment planning. When this foundational data becomes inaccessible or unreliable, the consequences ripple through the entire continuum of care. The ripple effect of corrupted medical images is severe and multifaceted:

Delayed or Inaccurate Diagnosis: This is the most immediate and dangerous outcome. A corrupted scan can force physicians to rely on less precise information, order repeat scans (exposing patients to additional radiation or prolonging their distress), or, in the worst cases, make an incorrect diagnosis, directly impacting patient treatment and outcomes.
Compromised Treatment Planning: Surgeons rely on the precise anatomical detail of MRIs to plan complex operations. Oncologists use PET scans to track tumor response to therapy. A distorted or incomplete image can render these plans useless, increasing surgical risks and undermining therapeutic strategies.
Erosion of Patient Trust: Data integrity is a cornerstone of the patient-provider relationship. When a healthcare facility cannot securely manage and access its own critical data, it damages the patient's confidence in the quality and reliability of their care.
Legal and Financial Liability: Beyond the clinical impact, image corruption opens the door to significant legal and financial risks. A misdiagnosis stemming from a faulty image can lead to malpractice claims. Furthermore, failure to protect the integrity of Electronic Protected Health Information (ePHI), as mandated by laws like the Health Insurance Portability and Accountability Act (HIPAA), can result in substantial regulatory fines, with penalties reaching up to $250,000 for violations .

While generic data recovery tools exist, they are dangerously inadequate for the healthcare environment. A simple file repair might restore a viewable picture, but it offers no guarantee that the diagnostic integrity of the image has been preserved. This guide provides a definitive framework for healthcare professionals, medical IT staff, and radiology technicians to navigate the complex world of medical image repair. It moves beyond basic recovery, offering a unique and comprehensive focus on integrating technical restoration protocols with the non-negotiable demands of HIPAA compliance and rigorous diagnostic quality assurance. Our purpose is to transform the concept of `healthcare photo recovery` from a risky gamble into a structured, safe, and effective process of true clinical image restoration.

Understanding Medical Image Corruption: Causes and Manifestations

To effectively repair a corrupted medical image, one must first understand the pathology of the problem. Image corruption is not a single issue but a symptom of various underlying failures. These causes can be broadly categorized into system-level failures, format-specific vulnerabilities, and process-related errors. A clear diagnosis of the cause is the first step toward a successful and safe restoration.

System-Level Failures (The Environment)

Often, the problem originates not within the image file itself, but in the environment where it is created, stored, or transmitted. These failures affect the fundamental bits and bytes that constitute the data.

Storage Media Degradation: Digital data is not immortal. Hard disk drives (HDDs), solid-state drives (SSDs), and long-term archival tapes are all subject to physical decay. Over time, "bit rot"---the gradual decay of storage media---can silently corrupt files. This is particularly dangerous in long-term archives (PACS) where images may not be accessed for years, only to be found unreadable when a patient returns for a follow-up.
Data Transfer Errors: A medical image travels a long journey from the imaging modality (e.g., CT scanner) to the PACS, and then to a radiologist';s workstation. Network interruptions, packet loss, or faulty network hardware can lead to incomplete file transfers, resulting in truncated files that are missing critical data segments. Verifying the integrity of files transmitted between separate archives is of critical importance .
Hardware & Software Malfunctions: An abrupt system shutdown due to a power outage during an image save operation can leave a file in a half-written, corrupted state . Similarly, bugs in the operating system or the acquisition software on an X-ray or MRI machine can introduce errors during the image creation process itself .
Cybersecurity Threats: Healthcare institutions are prime targets for cybercriminals. Ransomware attacks can encrypt entire image archives, making them inaccessible without a decryption key. Other forms of malware may be designed to maliciously delete or corrupt data, leading to widespread data loss and service interruptions. As noted by security researchers, unprotected DICOM servers exposed to the internet are vulnerable gateways for such attacks .

Format-Specific Issues (Focus on DICOM)

The Digital Imaging and Communications in Medicine (DICOM) standard is the universal language of medical imaging. While robust, its complexity creates specific points of failure.

A DICOM viewer interface displaying patient, study, and series metadata alongside the medical images. Corruption in this metadata can disconnect an image from its clinical context

The Anatomy of a DICOM File: A DICOM file is more than just a picture; it's a complex data object. It consists of two primary parts: the **metadata header** and the **pixel data**.
- Metadata (Header) Corruption: The header is a structured list of attributes, or "tags," containing all the contextual information. This includes crucial identifiers like Patient Name (Tag `(0010,0010)`), Patient ID (Tag `(0010,0020)`), Study Date (Tag `(0008,0020)`), and Modality (e.g., CT, MR). If this header is corrupted, the image may become an "orphan"---visually intact but completely disconnected from the patient's record in the PACS and Electronic Health Record (EHR). The image exists, but the system doesn't know who it belongs to or why it was taken.
- Pixel Data Corruption: This is damage to the raw image data itself. It manifests as visible artifacts on the image, such as black or gray blocks, colored stripes, severe geometric distortion, or large missing sections. The image may open, but it is diagnostically useless and misleading.
DICOM Standard Vulnerabilities: The standard itself is not immune to exploitation. A known vulnerability, identified as CVE-2019-11687, involves the 128-byte file preamble. This section of the file is not typically used by DICOM viewers but could be exploited to insert executable malware. While this doesn't directly corrupt the image data, it represents a security risk that could lead to broader system compromise and subsequent data corruption .

Human and Process-Related Errors

Not all corruption is accidental or technical. Failures in human processes and, in rare cases, intentional acts can also compromise image integrity.

Intentional Manipulation and Fraud: While uncommon in clinical practice, the possibility of intentional data manipulation exists, particularly in research settings. This can involve mislabeling images or inserting false data to skew study results . Such acts are a form of institutional corruption that undermines the primary purpose of the data .
Accidental Mismanagement: More common are unintentional errors. Using non-compliant or improper software to convert a DICOM file to a format like JPEG for a presentation can strip away vital metadata. Incorrectly editing an image (e.g., adding annotations with a non-standard tool) can corrupt the file structure. Procedural errors within the imaging workflow, such as selecting the wrong patient from a worklist, can lead to images being saved with incorrect metadata from the outset.

The Compliance Minefield: Navigating HIPAA in Medical Image Repair

Successfully restoring the pixels of a corrupted medical image is only half the battle. If the repair process violates patient privacy or data security regulations, the technical success is nullified by legal and ethical failure. Any attempt at medical image repair is an activity that directly handles ePHI, placing it squarely under the jurisdiction of HIPAA. Technical proficiency is irrelevant without strict compliance.

Core Principles: ePHI and the HIPAA Security Rule

The foundation of any compliant repair process is a deep understanding of HIPAA's core tenets.

Defining ePHI: The HIPAA Privacy Rule defines Protected Health Information (PHI) as any information that can be used to identify a patient and relates to their health, treatment, or payment. When this information is in electronic form, it is classified as ePHI . A DICOM file is a quintessential example of ePHI. It contains not only the image of a patient's anatomy but also a header filled with at least 18 distinct demographic identifiers, including name, dates, and location .
The Three Pillars of the Security Rule: The HIPAA Security Rule establishes national standards for protecting ePHI. It is built on three categories of safeguards that must be in place :
1. Administrative Safeguards: These are the policies and procedures that govern conduct. For image repair, this means having a documented policy defining who is authorized to perform repairs, a risk analysis of the repair process, and a designated security officer overseeing the activity.
2. Physical Safeguards: These measures protect physical access to ePHI. Repair activities must occur on secure workstations in controlled environments. A laptop with a corrupted file taken to an unsecured location for repair is a clear violation.
3. Technical Safeguards: These are the technology-based controls. For image repair, three are non-negotiable:
  - Access Control: Only authorized individuals should have the credentials to access the systems and tools used for repair.
  - Audit Controls: The system must create and maintain logs that record all activity related to ePHI. Every access, modification attempt, and action taken during the repair must be logged.
  - Encryption: ePHI must be encrypted both "at rest" (when stored on a drive) and "in transit" (when moved across a network) to render it unreadable to unauthorized parties.

Practical HIPAA Compliance During the Repair Process

Applying these principles translates into a concrete, defensible workflow for healthcare photo recovery.

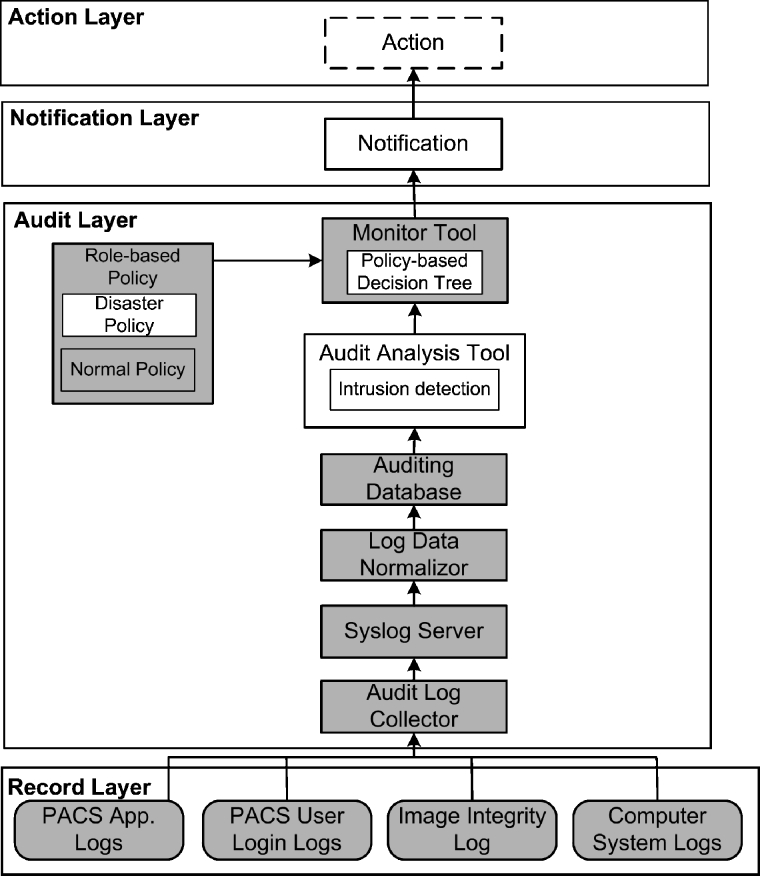

HIPAA-compliant auditing architecture — A four-layer HIPAA-compliant architecture for auditing medical images in PACS, illustrating the flow from data recording to action, as proposed in research to ensure security and accountability

The Golden Rule: Work on a Secure Copy: The original corrupted file is evidence. It must be preserved in its original state for any potential legal or forensic investigation. All repair attempts must be performed on a duplicated, secure copy of the file. This preserves the chain of custody and prevents further damage to the original.
Creating a "Clean Room" Environment: The repair process should be isolated to prevent data leakage. This can be achieved by using a dedicated, air-gapped workstation or a sandboxed virtual machine that is disconnected from the main hospital network. This "clean room" ensures that the ePHI is not accidentally exposed to the internet or other insecure systems.
Meticulous Audit Trails: Documentation is your best defense. Every step of the repair process must be logged. This includes the date and time, the operator's identity, the software and version used, the specific action taken (e.g., "corrected tag (0010,0020)"), and the outcome. This creates an irrefutable record of what was done, by whom, and why. Research has proposed formal architectures for tracking and auditing image workflows in PACS to meet these requirements .
Vetting Third-Party Services: If the repair is too complex to handle in-house and an external DICOM file repair service is considered, that vendor becomes a ";Business Associate" under HIPAA. A formal Business Associate Agreement (BAA) is mandatory. This legal contract requires the vendor to adhere to the same HIPAA security standards and accept liability for any breaches. Before engaging any service, you must verify their compliance credentials and security protocols.

Specialized Medical Image Recovery Protocols

This section forms the technical core of our guide, moving from theory to practice. A successful recovery is not a single action but a structured process of diagnosis, technique selection, and execution. The approach must be tailored to the specific type of corruption identified.

Triage and Diagnosis: Identifying the Nature of the Corruption

Before any tool is used, a thorough diagnosis is essential. This triage phase determines the likely cause and guides the selection of the appropriate repair protocol.

File-Level Analysis: The first step is a basic file health check. Is the file size zero bytes? Is it abnormally small for its modality (e.g., a 1KB CT slice)? Tools that can analyze file headers and signatures can quickly determine if the file is fundamentally malformed or simply an empty shell.
Metadata vs. Pixel Data Corruption: The next diagnostic step is to determine where the corruption lies. Can the image be opened in a DICOM viewer?
- If the image opens and is visually perfect, but the patient or study information is incorrect or missing, the problem is almost certainly confined to the **DICOM header**.
- If the image fails to open, or opens to reveal significant visual artifacts (blocks, stripes, distortion), the problem lies within the **pixel data** or the fundamental file structure.
Visual Artifact Classification: For pixel data corruption, categorizing the visual defect is key. Is it random noise, structured geometric distortion, or large missing regions? Each type of artifact points to a different underlying cause and requires a different algorithmic solution. For example, motion artifacts in MRI present as ghosting or blurring, which is distinct from the blocky artifacts caused by data packet loss.

Repair Techniques for Metadata and Header Corruption

This is often the most common and most recoverable form of corruption. The goal is to relink the visually intact image with its correct clinical context.

Method 1: Manual Tag Editing: For isolated errors, a DICOM expert can use specialized software to act as a "digital surgeon." Using tools like ImageJ with DICOM plugins, or scripting with libraries like `pydicom` in Python, an operator can manually access and edit individual DICOM tags. For example, if the `PatientID` tag `(0010,0020)` is incorrect, it can be corrected by referencing the correct information from the Radiology Information System (RIS) or another known-good image from the same study .
Method 2: Header Reconstruction from Template: When the header is extensively damaged, a more robust method is to rebuild it entirely. This involves taking a known-good DICOM file from the same imaging series, which serves as a template. The header from the template file is copied, and the pixel data from the corrupted file is then surgically inserted into this new, clean structure. This effectively gives the orphaned pixel data a new, correct "body."
Integrity Verification: A critical final step in any header repair is to ensure the pixel data was not inadvertently altered. This is done by calculating a cryptographic checksum (e.g., MD5, SHA-256) of the pixel data block before and after the repair. The checksums must match perfectly, proving that only the header was modified . While the DICOM standard itself doesn't have a built-in checksum for the entire file, this practice is essential for maintaining data integrity during repair .

Advanced Repair for Pixel Data Corruption (The AI & Algorithm Toolbox)

When the image itself is visually damaged, more sophisticated techniques are required. This is the domain of advanced algorithms and, increasingly, artificial intelligence. These tools aim to restore the image by making intelligent inferences about the missing or damaged information.

A. Denoising: Restoring Clarity from Noise

Problem: Medical images are often contaminated by noise from various sources (e.g., quantum noise in low-dose CT, electronic noise in MRI). This noise can obscure subtle diagnostic features, reducing the reliability of the image.

Techniques: While traditional methods like Gaussian or median filters can handle simple noise, the modern standard for clinical image restoration is deep learning (DL). Models such as Convolutional Neural Networks (CNNs), Denoising Autoencoders (DAEs), and Generative Adversarial Networks (GANs) are trained on vast datasets of paired clean and noisy images. They learn the underlying patterns of both the anatomy and the noise, allowing them to subtract the noise far more effectively than traditional algorithms while preserving critical details . Recent studies have shown that these deep learning approaches can significantly outperform older methods, improving image quality by 5-8 decibels (dB) in terms of Peak Signal-to-Noise Ratio (PSNR) .

Performance of Deep Learning Denoising Models (PSNR in dB)

B. Inpainting: Intelligently Filling Missing Data

Problem: When data is not just noisy but entirely missing---due to packet loss during network transfer or severe storage media errors---it leaves black or white voids in the image. Simply smoothing over these gaps is insufficient.

Techniques: Image inpainting aims to fill these missing regions with plausible, context-aware content. While classical methods exist, deep learning has revolutionized this field. Models based on the U-Net architecture or GANs are trained to understand the structure and texture of medical images. They can analyze the surrounding data and generate new pixels that seamlessly fill the gap. Advanced models even use "edge and structure priors," where the model first predicts the missing edges and structural lines before filling in the texture, resulting in highly realistic restorations . This is crucial for ensuring that a repaired vessel or tissue boundary follows a medically plausible path.

C. Artifact Correction: Fixing Complex Distortions

Problem: Many artifacts are not random noise but structured patterns resulting from the physics of the imaging process or patient-related factors.

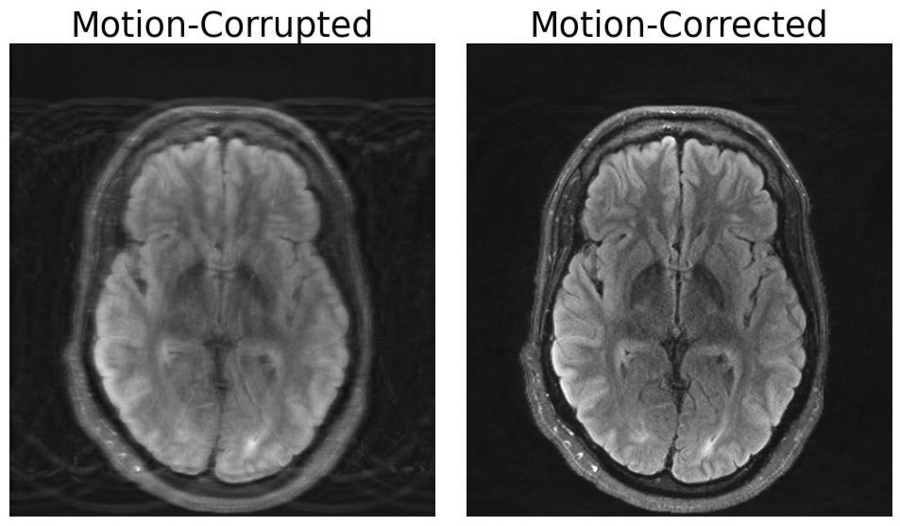

MRI motion artifact correction — Comparison of an MRI scan with significant motion artifacts (left) and the same scan after applying a deep learning-based motion correction algorithm (right), restoring diagnostic clarity

Motion Artifacts (MRI/CT): Patient movement during a scan is a common problem, causing blurring, ghosting, and streaking that can render an image undiagnostic . Retrospective correction techniques use algorithms to estimate the motion that occurred and computationally reverse its effects. Traditional methods like PROPELLER for MRI have been effective, but modern deep learning models are showing remarkable success. These models can be trained to recognize the specific patterns of motion artifacts and generate a motion-free image, combining physics-based models with deep learning to avoid creating unrealistic "hallucinations" .
Incomplete Data Reconstruction (CT): Artifacts can also arise when a CT scan is performed with incomplete data, for instance, in low-dose protocols (sparse-view) or when the scanner cannot make a full 360-degree rotation (limited-angle). This results in streaking and noise. Deep learning frameworks, often integrating a U-Net with the reconstruction algorithm, can learn to fill in the missing projection data (sinogram) before the final image is created, resulting in a high-quality CT image from an initially insufficient dataset .

Foundational Recovery: Repairing the File Structure

Scenario: This is the most severe case, where the file is so fundamentally damaged that no software can recognize it. The file's very structure is broken.

Method: This is the equivalent of open-heart surgery on a file. It requires an expert to use a hex editor to manually view and edit the file's raw binary code. The operator must have an encyclopedic knowledge of the DICOM standard to identify where the structure is broken---perhaps a mangled file preamble, an incorrect group length tag, or a corrupted data element delimiter---and manually patch the binary code to make it conformant again. This is an extremely high-risk procedure; one wrong byte change can lead to irreversible data loss.

Disclaimer: Manual file structure repair should only be attempted by highly specialized data recovery professionals. For most healthcare organizations, encountering this level of corruption is a clear signal to engage a professional, HIPAA-compliant data recovery service.

Modality-Specific Corruption Challenges

While the general principles of corruption and repair apply broadly, each medical imaging modality has its own unique ";personality" of artifacts and failure modes. A targeted recovery strategy must account for these differences.

Computed Tomography (CT)

CT scanners create images by reconstructing cross-sectional slices from hundreds of X-ray projections. This complex process is susceptible to specific types of artifacts.

Common Artifacts:
- Ring Artifacts: Caused by a miscalibrated or faulty detector element, these appear as concentric circles on the image, potentially obscuring pathology.
- Beam Hardening: As the X-ray beam passes through dense material (like bone), its lower-energy photons are absorbed, "hardening" the beam. This can cause dark streaks or bands between dense objects.
- Metal Artifacts: Medical implants (e.g., dental fillings, prosthetic hips) are a major source of artifacts. They can cause severe streaking and shadowing that completely obscures the surrounding anatomy.
Recovery Focus: Many CT artifacts can be addressed with specialized reconstruction and post-processing algorithms. Metal Artifact Reduction (MAR) algorithms, often based on iterative reconstruction or deep learning, are designed to identify and reduce the streaking caused by implants . For software-related issues, sometimes the problem is specific to the vendor';s system. For example, a "Fatal Error in Image Reconstruction System" on some Siemens CT scanners can sometimes be resolved by rebooting and clearing communication between the control computer and the reconstruction system, rather than being a true data corruption issue .

Magnetic Resonance Imaging (MRI)

MRI uses powerful magnetic fields and radio waves to generate images. It is highly sensitive to environmental factors and patient physiology, making it prone to a different set of artifacts.

Common Artifacts:
- Motion Artifacts: As previously discussed, this is the most prevalent artifact in MRI due to longer scan times. It manifests as ghosting, blurring, and smearing.
- Aliasing (Wrap-around): This occurs when the field of view is smaller than the body part being imaged, causing anatomy outside the field to "wrap around" and appear on the opposite side of the image.
- Chemical Shift Artifacts: Caused by the different resonant frequencies of fat and water, this appears as dark or bright bands at fat-water interfaces.
- Susceptibility Artifacts: These are signal losses and distortions that occur near interfaces of materials with different magnetic susceptibilities, such as air-tissue boundaries or near metallic implants.
Recovery Focus: The primary focus for MRI repair is advanced motion correction. Beyond the DL models already mentioned, some recovery is possible if the raw scan data (k-space data) is accessible. K-space is the frequency-domain representation of the image, and reprocessing this raw data with different parameters or correction algorithms can sometimes mitigate artifacts that are "baked into" a standard reconstructed image. This is a highly specialized process, often requiring vendor-specific tools or open-source reconstruction frameworks like Gadgetron .

X-Ray (Digital Radiography)

Digital Radiography (DR) has replaced film in most settings, but its digital detectors are not without their own issues.

Common Issues:
- Detector Dropout (Dead Pixels): A faulty element in the detector panel can result in a single pixel or a line of pixels that consistently appear white or black, creating a permanent artifact.
- Grid Lines: Improper alignment of an anti-scatter grid can cause fine lines to appear on the image.
- Image Lag / Ghosting: If a detector is not cleared properly between exposures, a faint "ghost" of the previous image can be superimposed on the current one.
Recovery Focus: Many DR issues are preventable with proper quality control. Regular detector calibration is crucial for identifying and mapping out dead pixels. Post-acquisition, `clinical image restoration` can involve applying a ";flat-field" correction to compensate for non-uniform detector response. For dead pixels, inpainting techniques can be used to fill in the missing data by interpolating from neighboring pixels. This is generally effective for isolated pixel defects but cannot correct for large clusters or lines of failed detector elements. Adherence to best practices in digital radiography, including equipment QA, is the best defense .

The Final Hurdle: Quality Assurance for Repaired Medical Images

A repaired image is not a restored image until it has been rigorously validated. The goal of medical image repair is not to create a visually pleasing picture, but to restore a diagnostically accurate tool. This final quality assurance (QA) step is arguably the most critical in the entire workflow, as it stands between a successful recovery and a potentially catastrophic clinical error.

The Danger of "Plausible" but Inaccurate Images

The greatest risk in advanced image repair, especially with AI-based techniques, is the creation of "hallucinations"---images that appear realistic and plausible but are physically or anatomically inaccurate . An inpainting algorithm might flawlessly fill a missing region in a lung CT, but in doing so, it could inadvertently erase a small, early-stage nodule. A denoising model might smooth away image noise but also blur the subtle margins of a tumor. A visually appealing repair that subtly alters pathology is far more dangerous than an obviously corrupt file, as it can lead to a false sense of confidence and a missed diagnosis.

Objective (Quantitative) Metrics

The first layer of QA involves quantitative metrics that mathematically compare the repaired image to a reference (if available) or measure its intrinsic qualities. However, these must be used with caution.

Peak Signal-to-Noise Ratio (PSNR): Measures the ratio between the maximum possible power of a signal and the power of corrupting noise. Higher PSNR generally indicates better quality.
Structural Similarity Index (SSIM): A more advanced metric that assesses changes in luminance, contrast, and structure. An SSIM score closer to 1.0 indicates a higher similarity to the original image.
Contrast-to-Noise Ratio (CNR): Particularly important in medical imaging, CNR measures the difference in signal intensity between a region of interest (e.g., a lesion) and the background, relative to the noise. A high CNR is essential for detectability.

Contextualizing Their Limits: While these metrics are useful for comparing the performance of different repair algorithms in a research context, they are poor judges of clinical utility. As noted in task-based image quality assessment research, metrics like PSNR and SSIM do not understand clinical relevance . An image can have a near-perfect SSIM score while still obscuring a diagnostically critical microcalcification in a mammogram.

Subjective (Qualitative) and Task-Based Validation

Because objective metrics are insufficient, human expert validation is mandatory. This is the gold standard for QA.

Radiologist reviewing medical scans — A qualified radiologist performing a subjective and task-based validation of medical images, a mandatory step to ensure the diagnostic accuracy of any repaired file

Mandatory Radiologist Review: Every repaired image that is intended for clinical use must be reviewed by a qualified radiologist or the appropriate physician specialist. There are no exceptions. Their expert judgment is the final arbiter of whether the image is diagnostically sound.
Comparison with Priors: The repaired image should be compared side-by-side with any available prior studies of the same patient. The radiologist looks for anatomical consistency and ensures that the repair has not introduced any new, unexplained structures or altered existing ones.
Task-Based Assessment: This is the ultimate test of an image's quality. The question is not "Does it look good?" but "Can I perform the required diagnostic task?" For example, can a radiologist accurately measure the volume of a tumor, identify a subtle fracture line, or count the number of lesions on the repaired image? If the repair interferes with these tasks, it has failed, regardless of its visual appeal. Studies on diagnostic accuracy often compare performance on original versus processed images to quantify any drop-off .

DICOM Conformance and Integrity Check

The final technical check ensures the repaired file will function correctly within the clinical ecosystem.

DICOM Validation: The repaired file should be run through a DICOM validation tool or service. This checks the file's structure and tags against the official DICOM standard, ensuring it is fully compliant and will not cause issues with other systems .
Grayscale Standard Display Function (GSDF) Verification: The DICOM standard includes Part 14, the GSDF, which ensures that grayscale images are displayed consistently across different monitors. The QA process must verify that the repaired image responds correctly to standard viewer functions like window/level adjustments and that its grayscale presentation is consistent. Studies have shown that uncalibrated displays can impact diagnostic accuracy, so ensuring the repaired image adheres to this standard is vital .

Closing the Loop: Integration with Clinical Systems and Workflow

Recovering and validating a single file is a tactical victory. The strategic goal, however, is to safely re-integrate this data into the clinical ecosystem and use the incident as a learning opportunity to strengthen the entire data management workflow. This final phase closes the loop from crisis to resolution and prevention.

Re-integrating into PACS and EHR

Introducing a modified file back into a live clinical system is a delicate operation that requires a strict protocol to maintain data provenance and transparency.

Procedure for Re-ingestion: The repaired and validated image should not simply overwrite the old file. It should be ingested into the PACS as a new instance or series. This process must be handled by an authorized PACS administrator. The integration of PACS and EHR systems is designed to streamline this flow of information, but it also means that any data introduced must be meticulously managed to avoid polluting the patient's longitudinal record .
Critical Metadata Flagging: It is absolutely essential that the repaired image is clearly identified as such. This can be accomplished by adding a specific private DICOM tag or, more practically, by adding a prominent note in the study description within the PACS and the patient';s EHR. This note should state that the image is a "repaired version" and, ideally, include a reference ID linking to the detailed repair audit trail. This transparency is crucial for any future clinical or legal review.
Archiving the Originals: The original corrupted file and the secure working copy must not be deleted. They should be moved to a separate, quarantined, and secure archive. This archive serves as a legal hold, preserving the original evidence of the data corruption event and the full history of the repair process for auditing and potential e-discovery purposes.

Establishing a Formal Image Recovery Workflow

Relying on ad-hoc heroics to fix corrupted images is unsustainable and risky. A mature healthcare organization must develop a formal Standard Operating Procedure (SOP) for handling these incidents. This transforms a reactive crisis into a managed process.

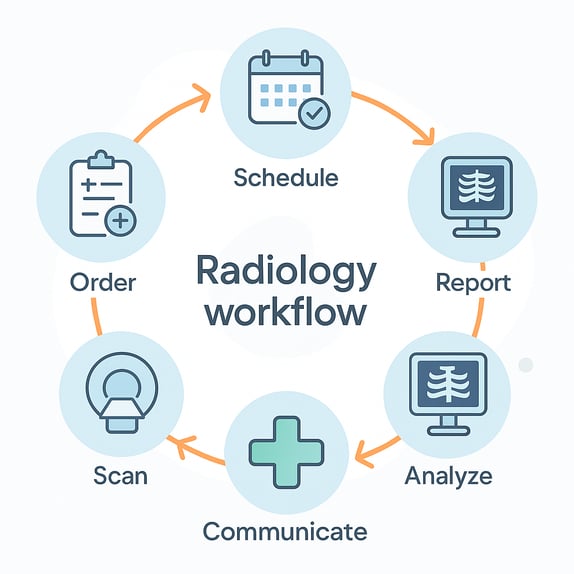

Radiology workflow diagram — A conceptual diagram of a standard radiology workflow. A formal image recovery procedure should be integrated into this workflow, defining roles and actions for each stage from detection to resolution

The SOP should clearly define roles and responsibilities:

Detection: Who first identifies the issue? Typically, a radiologic technologist, radiologist, or referring clinician. They need a clear, simple process for reporting the problem.
Triage: Who performs the initial investigation? This is usually a PACS administrator, who diagnoses the likely type of corruption and assesses the urgency.
Repair: Who is authorized to perform the technical repair? This should be a small, highly-trained group of IT specialists or data integrity experts.
Validation: Who provides the clinical sign-off? This is always a qualified radiologist or physician.
Documentation: Who is responsible for maintaining the audit trail for the entire incident?

The Best Repair is Prevention: Backup and Disaster Recovery

Ultimately, the need for high-risk DICOM file repair is often a symptom of a larger failure in data protection strategy. The most robust defense against data loss from corruption is a comprehensive, automated, and geographically redundant backup and disaster recovery (DR) plan.

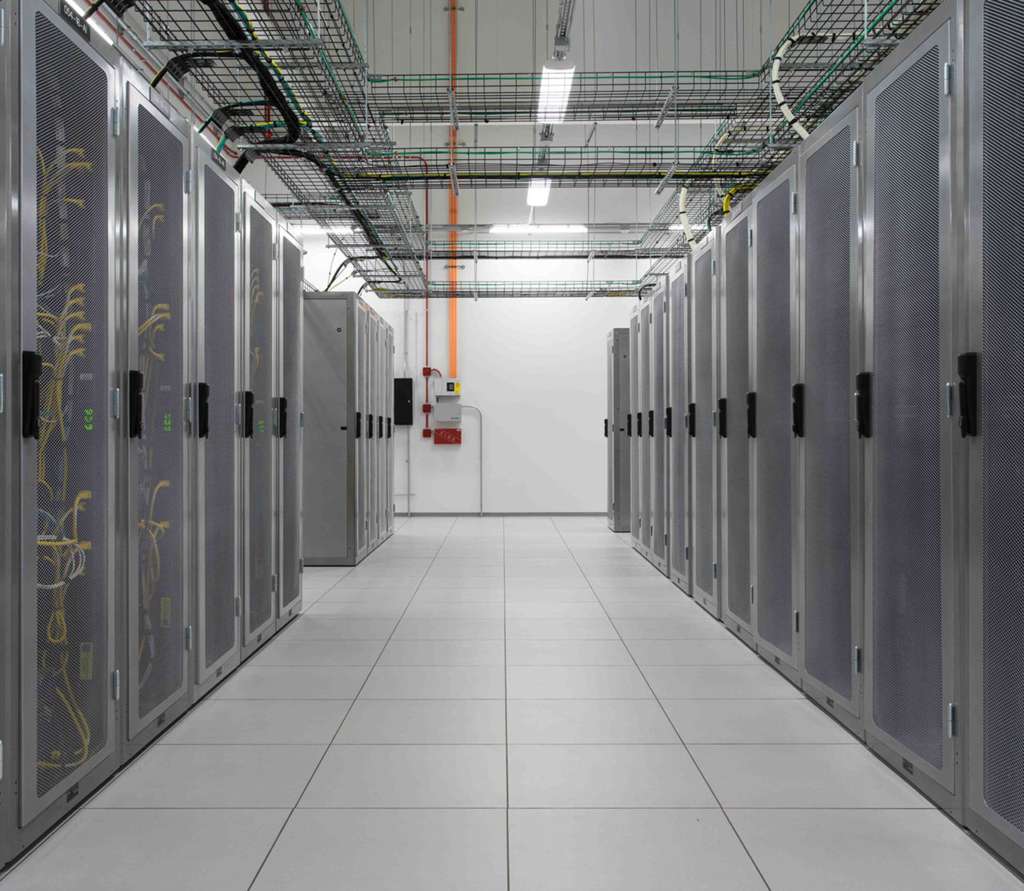

*A modern data center, the backbone of a robust backup and disaster recovery strategy. Geographically separate facilities ensure business continuity and data availability even in the event of a site-wide disaster*

A proper DR solution, as mandated by HIPAA's security rule, ensures that even if a primary data store is compromised by hardware failure, ransomware, or natural disaster, a clean, uncorrupted copy of the data is available for rapid restoration. Key elements of a strong DR plan for medical imaging include:

Regular, Automated Backups: Backups of the entire PACS archive should be performed automatically and frequently.
Geographic Redundancy: A backup copy of the data must be stored in a separate physical location, far enough away to be unaffected by a regional disaster (e.g., hurricane, earthquake) that might strike the primary data center.
Data Immutability: Modern backup solutions can store data in an immutable format, meaning it cannot be altered or deleted for a set period, providing powerful protection against ransomware.
Regular Testing: A DR plan is useless if it doesn't work. Healthcare organizations must regularly test their ability to restore data from backups to ensure the process is effective and can meet the required recovery time objectives.

By investing in a resilient data protection infrastructure, a healthcare organization can shift its focus from the high-stakes drama of file repair to the calm certainty of a simple, clean restore. This is the ultimate expression of closing the loop: learning from data corruption incidents to build a system where they no longer pose a critical threat to patient care.

Practical Guide: A Standard Operating Procedure for Medical Image Repair

This step-by-step guide provides a compliant and structured approach to recovering a corrupted medical image. Always operate on a secure copy, never the original file.

1. Triage and Initial Diagnosis

Identify the corruption type to determine the correct recovery path.

File Access Issues:
- [ ] File cannot be opened by any DICOM viewer (e.g., "Invalid DICOM format" error).
- [ ] File size is 0KB or abnormally small.
- Potential Cause: File header corruption, incomplete transfer.
Visual Data Issues:
- [ ] Image opens but is black, gray, or distorted with uniform patterns.
- [ ] Image displays severe artifacts: stripes, blocks, or "checkerboard" patterns.
- [ ] Parts of the image are missing (black or white voids).
- Potential Cause: Pixel data corruption, packet loss.
Metadata Issues:
- [ ] Image is visually correct, but patient information (Name, ID) is wrong or missing.
- [ ] Study information (Date, Modality) does not match the RIS/EHR record.
- Potential Cause: DICOM header tag corruption.

Initial Diagnosis: Based on the symptoms, the issue is likely [e.g., Metadata Corruption], and the recommended primary approach is [e.g., Header Reconstruction].

2. Repair Protocols and SOPs

Select the appropriate protocol. All actions must be logged in an audit trail.

Protocol Name	Applicable Scenario	Core Tools / Methods	Estimated Success	Critical Note
A: Metadata Reconstruction	Metadata is corrupt, but pixel data is intact.	DICOM Toolkits (pydicom, DicomWorks), Hex Editors	>90%	Requires a valid reference file from the same study/series.
B: AI-Powered Inpainting & Denoising	Image has visual artifacts (noise, missing blocks).	Deep Learning Models (U-Net, GANs), Specialized Restoration Software	50-80%	May introduce subtle, diagnostically misleading "hallucinations." Requires expert validation.
C: File Header Repair	File is completely unreadable by viewers.	Hex Editors, DICOM file structure knowledge	30-60%	High risk. Incorrect edits can cause irreversible data loss.
D: Professional Data Recovery Service	Physical media damage or when all other methods fail.	HIPAA-compliant data recovery vendors	Varies	A Business Associate Agreement (BAA) is mandatory.

SOP Example: Protocol A - Metadata Reconstruction

Compliance Pre-Check:

[ ] Authorization: Confirm you have explicit rights to access and modify this patient's ePHI.
[ ] Immutable Backup: Create a secure copy of the corrupted file. Name it [OriginalFileName]_corrupt_backup_[YYYYMMDD].
[ ] Secure Environment: Perform all operations within a firewalled, monitored, and secure workstation.

Execution Steps:

Obtain Reference File: From the PACS, acquire a known-good DICOM file from the exact same imaging series.
Launch Tool: Open a DICOM toolkit such as a script using the pydicom library.
Load Files:
- Load the corrupted file copy as the source for pixel data.
- Load the reference file as the source for metadata.
Execute Reconstruction:
- Create a new DICOM dataset using the metadata from the reference file.
- Replace the pixel data element ((7FE0,0010)) in the new dataset with the pixel data from the corrupted file.
- Ensure critical UIDs (like SOP Instance UID) are regenerated to avoid duplicates in the PACS.
Save Repaired File:
- Save the newly constructed dataset as [OriginalFileName]_repaired_[YYYYMMDD].dcm.
- Do not overwrite any existing files.

3. Post-Repair Quality Assurance Checklist

A repaired file is NOT clinically valid until it passes this checklist, verified by a qualified professional.

Verification Item	Method of Verification	Acceptance Criteria	Result (Pass/Fail)
1. Technical Readability	Open in primary PACS viewer and at least one other DICOM software (e.g., Horos, RadiAnt).	File opens without errors, warnings, or significant delay.	`[ ]`
2. Metadata Accuracy	Cross-reference key tags (`PatientID`, `StudyDate`, `AccessionNumber`) against the RIS/EHR.	100% match for all critical patient and study identifiers.	`[ ]`
3. Diagnostic Integrity	Visual comparison by a radiologist against prior/subsequent images in the series.	No new artifacts, blurs, or distortions in key anatomical regions. Diagnostic features are preserved.	`[ ]`
4. Functional Consistency	Test window/level adjustments, measurements, and annotations.	All viewer functions operate as expected. Measurements are consistent with non-corrupted images.	`[ ]`

Final Determination:

[ ] Validation Passed: The file is deemed clinically acceptable. It can be re-ingested into the PACS with a "repaired" flag and a link to the audit log.
[ ] Validation Failed: The file is not safe for diagnostic use. Quarantine the file and document the failure reason. Escalate to Protocol D if necessary.

4. Compliance and Risk Red Lines

Do (Mandatory Actions)	Don't (Strict Prohibitions)
`✓` Always work on a secure, audited copy of the file.	`✗` Never modify the original corrupted file directly.
`✓` Document every tool, version, and step in a detailed audit log.	`✗` Never use unverified, non-compliant, or public online repair tools.
`✓` Ensure every repaired image is validated by a qualified clinician before it enters a patient record.	`✗` Never share screenshots or file snippets containing ePHI on public forums or insecure channels.
`✓` If a file cannot be safely repaired, document it as a permanent data loss event.	`✗` Never guess or fabricate missing metadata. If it cannot be verified, it must be left blank or noted as unknown.

Call to Action

Medical images are the bedrock of modern diagnosis. Don't let data corruption compromise patient care. Ensure every image is diagnostically sound with secure, compliant, and validated medical image repair solutions. Discover our enterprise-grade tools and professional services at photo-repair.magicleopard.com/healthcare-solutions.

References

Medical Image Corruption: A Comprehensive Guide to Recovery, Compliance, and Quality Assurance ​

Introduction: When Medical Images Fail - The Critical Impact on Patient Care ​

Understanding Medical Image Corruption: Causes and Manifestations ​

System-Level Failures (The Environment) ​

Format-Specific Issues (Focus on DICOM) ​

Human and Process-Related Errors ​

The Compliance Minefield: Navigating HIPAA in Medical Image Repair ​

Core Principles: ePHI and the HIPAA Security Rule ​

Practical HIPAA Compliance During the Repair Process ​

Specialized Medical Image Recovery Protocols ​

Triage and Diagnosis: Identifying the Nature of the Corruption ​

Repair Techniques for Metadata and Header Corruption ​

Advanced Repair for Pixel Data Corruption (The AI & Algorithm Toolbox) ​

A. Denoising: Restoring Clarity from Noise ​

B. Inpainting: Intelligently Filling Missing Data ​

C. Artifact Correction: Fixing Complex Distortions ​

Foundational Recovery: Repairing the File Structure ​

Modality-Specific Corruption Challenges ​

Computed Tomography (CT) ​

Magnetic Resonance Imaging (MRI) ​

X-Ray (Digital Radiography) ​

The Final Hurdle: Quality Assurance for Repaired Medical Images ​

The Danger of "Plausible" but Inaccurate Images ​

Objective (Quantitative) Metrics ​

Subjective (Qualitative) and Task-Based Validation ​

DICOM Conformance and Integrity Check ​

Closing the Loop: Integration with Clinical Systems and Workflow ​

Re-integrating into PACS and EHR ​

Establishing a Formal Image Recovery Workflow ​

The Best Repair is Prevention: Backup and Disaster Recovery ​

Practical Guide: A Standard Operating Procedure for Medical Image Repair ​

1. Triage and Initial Diagnosis ​

2. Repair Protocols and SOPs ​

SOP Example: Protocol A - Metadata Reconstruction ​

3. Post-Repair Quality Assurance Checklist ​

4. Compliance and Risk Red Lines ​
