Guide to Repairing Corrupted CAD Files: Expert Solutions for DWG, DXF & Design Document Issues

For engineers, architects, and designers, CAD files are the lifeblood of their projects. The loss or corruption of these valuable assets can lead to catastrophic delays, significant financial costs, and immense frustration. Understanding why files become corrupted and knowing how to repair them is an essential skill in any design-driven industry. This guide provides a comprehensive overview of the causes, symptoms, and solutions for repairing corrupted CAD files, with a focus on common formats like DWG and DXF.

Understanding CAD File Corruption

Data corruption refers to errors in computer data that occur during writing, reading, storage, or transmission, which introduce unintended changes to the original data. In the context of CAD, this can render a design file unusable, compromising its integrity and accessibility. According to a report by the Ponemon Institute, hardware failures, human errors, and software corruption contribute to over 75% of all data loss incidents, a statistic that underscores the vulnerability of digital design files (VaultTek).

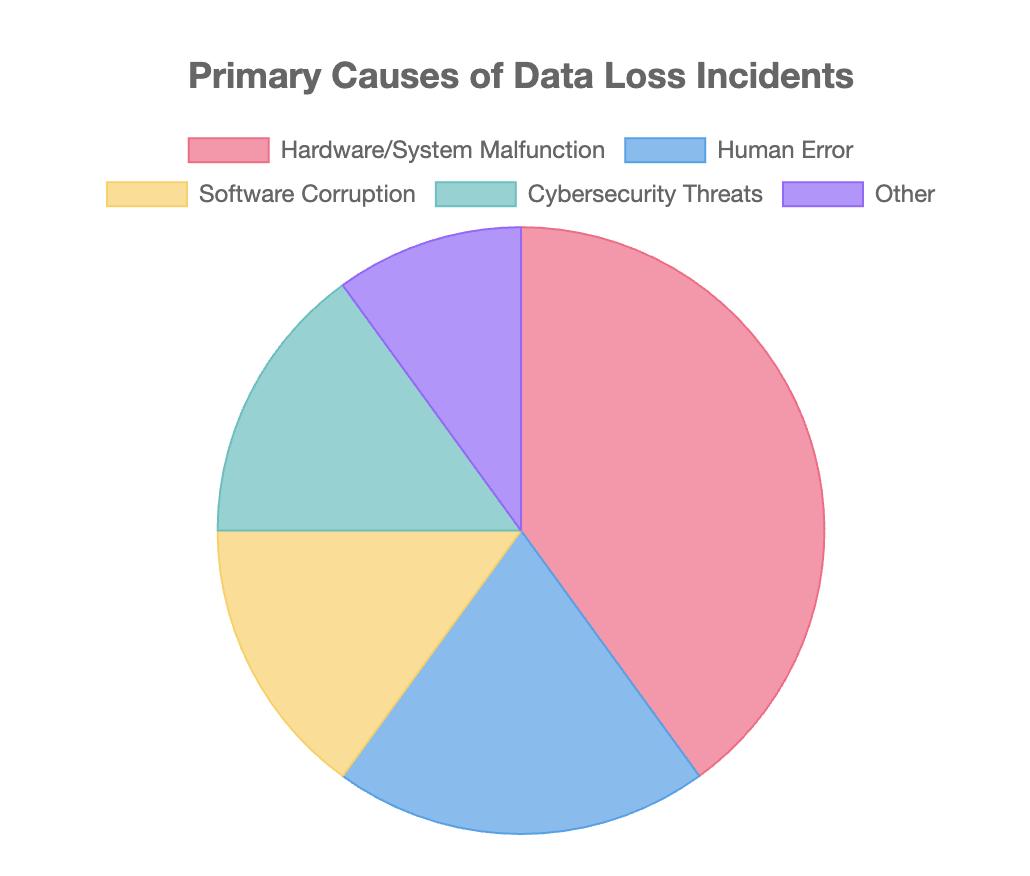

Common Causes of Corruption

File corruption can stem from a variety of sources, ranging from software glitches to hardware failures. Understanding these root causes is the first step toward prevention.

• Software and System Issues: Bugs within CAD software or the operating system can lead to improper file saving operations. System crashes or sudden power loss during a save process are notorious for leaving files in an incomplete or corrupted state (EaseUS).
• Hardware Failures: Bad sectors on a hard drive, faulty USB drives, or network transmission errors (packet loss) can introduce errors into the file data (DataCore).
• Third-Party Applications and Incompatibility: Files created or saved by non-Autodesk or non-RealDWG products can introduce incompatible data. Similarly, third-party plugins running within AutoCAD can sometimes interfere with file operations (Autodesk Support).
• Unwanted Data Bloat: Over time, drawings can accumulate unnecessary data such as unregistered applications (RegApps), excessive scale list entries, and DGN linetypes, which can lead to sluggish performance and increase the risk of corruption (Land FX).
• Human Error and Malicious Attacks: Accidental deletion, improper file handling, or malicious attacks from malware and ransomware can directly damage or encrypt CAD files, rendering them inaccessible (LinkedIn).

Symptoms of a Corrupted File

Identifying a corrupted file is usually straightforward, as it often presents clear and disruptive symptoms. According to Autodesk, these can include:

• The file fails to open, often accompanied by an error message like "Drawing file is not valid."
• The file opens but with errors, or it causes the CAD application to hang or crash.
• Noticeable degradation in performance, such as slow editing or delayed command execution.
• A sudden and unexplained increase in file size.
• Visual problems, such as display or regeneration issues, and drawing elements that are missing or shown incorrectly.

Recognizing these signs early can help mitigate data loss and increase the chances of a successful recovery (Autodesk Help).

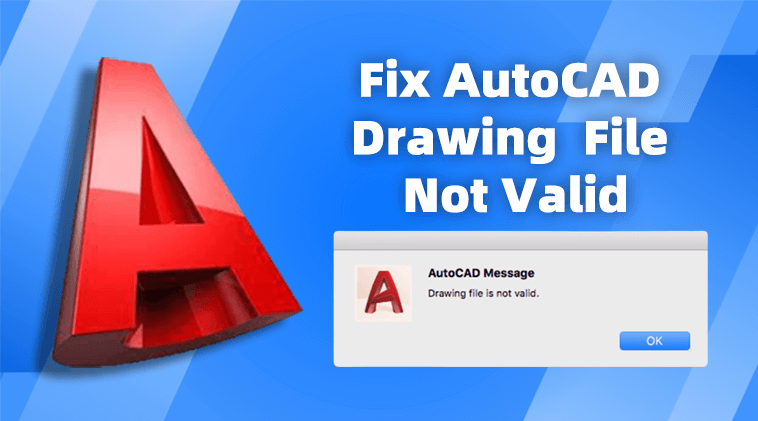

Common AutoCAD error messages indicating that the drawing file is corrupted or invalid

Repairing Common CAD File Formats

The method for repairing a corrupted file often depends on its format. While some general principles apply across the board, specific file types have unique structures and dedicated recovery techniques.

DWG (Drawing) Files

DWG is the native format for AutoCAD and one of the most widely used CAD formats. Due to its complexity, it's also prone to corruption. Standard recovery procedures include:

• RECOVER Command: This is the primary tool within AutoCAD. Opening a blank drawing and running the RECOVER command allows the software to attempt an automated repair of the selected file.
• Backup Files: AutoCAD automatically creates backup files (.bak) and autosave files (.sv$). Renaming these files to have a .dwg extension is often the quickest way to restore a recent version of your work.
• Inserting as a Block: Sometimes, a corrupted file that won't open directly can be inserted as a block into a new, blank drawing. This can salvage the geometry, which can then be exploded and saved into a new file.
• Data Cleansing: For files that open but are unstable, using commands like PURGE (especially for RegApps), AUDIT to fix detected errors, and OVERKILL to remove duplicate objects can clean the drawing and resolve underlying issues (Symetri).

DXF (Drawing Exchange Format) Files

DXF files are text-based representations of DWG drawings, making them interoperable but also vulnerable. Since they are essentially text files, they offer a unique manual repair option:

• Text Editor Repair: For advanced users, a corrupted DXF can be opened in a text editor (like Notepad++). By comparing the corrupted section with the structure of a valid DXF file, it may be possible to manually identify and remove garbage characters or truncated sections (EaseUS).
• CAD Software Recovery: Similar to DWG files, most CAD programs have built-in utilities to recover or repair DXF files. Autodesk recommends opening a blank drawing and attempting to open the corrupt DXF, which may trigger an error message on the command line pointing to the problematic line number (Autodesk Support).

STEP and IGES (3D Model) Files

STEP and IGES are neutral formats used for exchanging 3D model data between different CAD systems. Corruption often manifests as missing surfaces, gaps, or incomplete solids.

• Surface Modeling Software: Tools like Rhino are particularly effective at repairing these files. Because they are surface modelers, they can read as much valid information as possible, skipping corrupt objects, and provide tools to manually rebuild or patch missing surfaces (McNeel Wiki).
• Specialized Repair Tools: Software like TransMagic is designed to automatically repair geometric errors as files are loaded. It can stitch gaps, replace missing faces, and convert the model into a watertight solid (TransMagic).

STL (Stereolithography) Files

Primarily used for 3D printing, STL files describe surface geometry using triangular meshes. Corruption often involves holes, non-manifold edges, or inverted normals.

• Mesh Repair Software: Several tools are dedicated to fixing STL files. Meshmixer is a popular free tool that combines a user-friendly interface with powerful functions to repair complex mesh errors. Other options include Autodesk's Netfabb, which is geared towards engineers, and open-source software like Blender and MeshLab (Formlabs).
• Automated Online Tools: For quick fixes, several online services offer automated STL repair. Users can upload their file, and the service will attempt to fix common issues and provide a downloadable repaired version (Formware).

Other Notable Formats (DWF, DWFx, SAT)

While less common, other formats can also suffer from corruption.

• DWF/DWFx: These are "Design Web Format" files intended for viewing and plotting, not editing. If a DWF/DWFx file is corrupt, the most reliable solution is to recreate it from the original source drawing file (e.g., the DWG). Attempting to repair the DWF itself is often unsuccessful (Autodesk Support).
• SAT (ACIS): As a solid modeling kernel format, corrupted SAT files often require specialized 3D modeling software with robust geometry healing capabilities to repair them.

Advanced Repair Strategies and Tools

When standard methods fail, more advanced strategies and specialized software can provide a path to recovery. These range from built-in utilities that are often overlooked to powerful third-party applications designed specifically for data recovery.

Built-in CAD Software Utilities

Beyond the basic RECOVER command, AutoCAD and similar programs offer a suite of tools for deep cleaning and repair. A systematic approach is often most effective:

1. AUDIT: This command evaluates the integrity of a drawing and can fix detected errors. It's a crucial first step for any problematic file that can still be opened.
2. PURGE: This tool removes unused items like layers, blocks, and text styles. A lesser-known but powerful feature is its ability to remove "RegApps" (Registered Applications), which can cause significant file bloat and corruption. This is done by using the command-line version: -PURGE, selecting 'R' for Regapps, and purging all.
3. WBLOCK: The Write Block command can be used to export selected objects---or the entire drawing---to a new, clean DWG file. This process often strips out corrupt data and database junk, resulting in a healthier file.
4. -SCALELISTEDIT: An excessive number of scales in a drawing is a known cause of performance issues and corruption. This command-line utility can reset the scale list to its default state.

Combining these commands in a sequence---such as AUDIT, PURGE, -SCALELISTEDIT, and then SAVEAS---can resolve many persistent corruption issues (Autodesk Support).

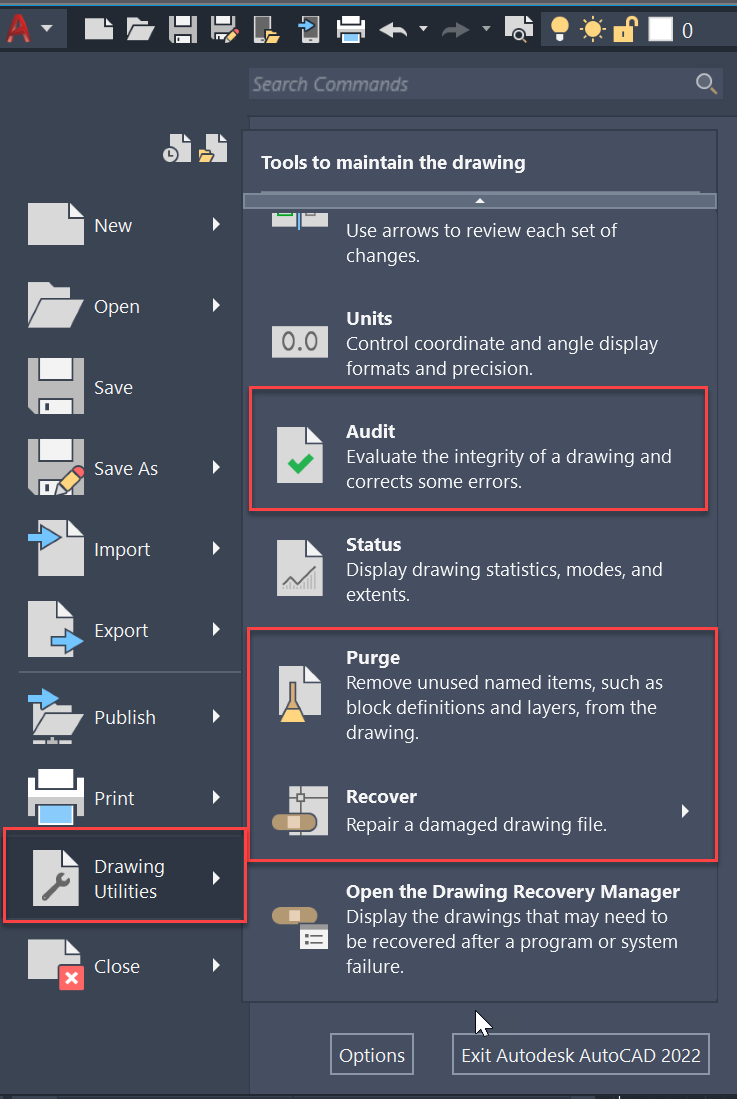

The AUDIT command in AutoCAD can evaluate the integrity of the drawing and fix errors.

Third-Party Recovery Software

When native tools are insufficient, dedicated file recovery software can be a lifesaver. These tools use advanced algorithms to scan file structures and retrieve data even from severely damaged files.

"Countless data recovery tools claim to recover DWG files... The best DWG file recovery software should be able to recover files lost due to deletion, formatting, file corruption, or system errors. It should also offer a high recovery rate and an intuitive interface." - Kingshiper

Several reputable options are available for various file types:

• For DWG/DXF: Tools like Kingshiper Data Recovery, DataNumen DWG Recovery, and Recovery Toolbox for DWG are designed to repair and recover data from AutoCAD files. They can often restore objects, blocks, and layers from files that are completely inaccessible (DataNumen).
• For General File Repair: Solutions like EaseUS Fixo File Repair offer support for a wide range of formats beyond CAD, including documents, images, and videos, making them versatile tools for a design office.
• For Vector Graphics (SVG, EPS, etc.): While dedicated repair tools are less common, some general data recovery software like DiskInternals Uneraser or Donemax Data Recovery can restore deleted or lost vector files. For SVG files specifically, sometimes simply resizing the artwork in a vector editor and re-exporting can fix rendering issues caused by mathematical precision errors (LogoPackage).

Preventative Measures and Best Practices

The most effective strategy for dealing with corruption is to prevent it from happening in the first place. Adopting robust data management practices is crucial.

• Regular Backups: This is the single most important preventative measure. The 3-2-1 backup rule is a best practice: maintain at least three copies of your data, on two different types of media, with at least one copy stored offsite or in the cloud (VaultTek).
• Routine Drawing Maintenance: Regularly run AUDIT and PURGE on your drawings, especially before archiving or sending them to clients. This keeps files clean and lean.
• Be Wary of External Files: When working with files from external sources (like consultants), always open and inspect them in a separate session. Clean them of unwanted data (RegApps, DGN linetypes, proxy objects) before using them as external references (Xrefs) in your main project (Land FX).
• Use Reliable Hardware and Software: Invest in quality storage media and keep your CAD software and operating system updated with the latest patches, which often include bug fixes that can prevent data corruption.

Conclusion: Safeguarding Your Design Assets

CAD file corruption is a serious threat that can derail projects and lead to significant rework. While it's impossible to eliminate the risk entirely, a combination of preventative maintenance, good workflow habits, and knowledge of recovery techniques can drastically reduce its impact. By understanding the causes of corruption, recognizing the symptoms early, and being equipped with the right tools---from built-in commands like RECOVER and AUDIT to specialized third-party software---design professionals can protect their valuable digital assets and ensure project continuity. Ultimately, a proactive approach focused on regular backups and drawing hygiene remains the best defense against the costly consequences of data loss.
